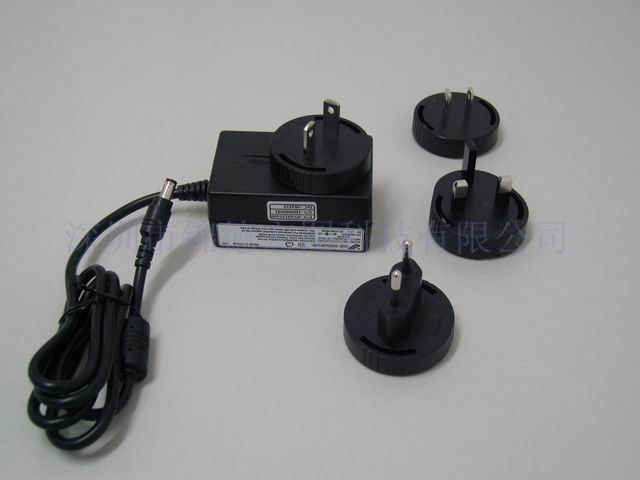

15W系列医疗适配器

 15W系列医疗适配器规格如下：

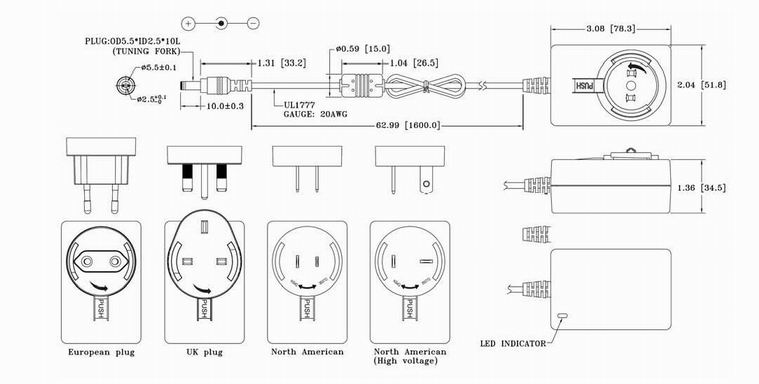

外观尺寸如下：

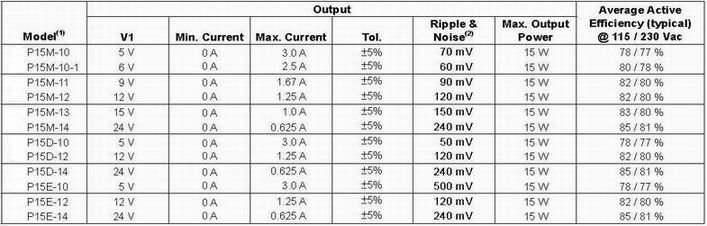

技术参数如下：

 Features

-Interchangealble AC plugs

-High efficiency

-Low ripple & noise

-Over voltage protection

-Short-circuit protection

-100% burn-in at full rated load

-Standby consumption less than 0.3W

-Compliant with CEC and ENERGY STAR efficiency

  Level V repuirements

-Compliant with RoHS requirements

Input Specifications

-Input voltage:                              90-264 VAC

-Input frequency:                          47-63 Hz

-Input current:                               0.5A(rms)for 115 VAC

                                                     0.3A(rms)for 230 VAC

-Enclosure leakange current:       100 uA max.@ 264 VAC,63Hz

Output Specifications

-Output voltage/current:       See rating chart

-Maximum output power:      See rating chart

-Ripple and noise:                1% peak to peak maximum(except 70

                                              mVp-p max.for PMP 15M-10)

-Overvoltage protection:       Set at 116% to 230% of its nominal

                                               Output voltage

-Overcurrent protecton:         Protected to short circuit conditions

-Temperature coefficient:      ±0.04%/℃ maximum

-Transient response:              Maximum excusion of 4% or better on

                                               all models, recovering to 1% of final

                                               value within 500 us after a 25% step

                                               load change

Environmental Specifications:

-Operating temperature:         0℃ to +40℃

-Storage temperature:           -40℃ to +85℃

-Relative humidity:                 10% to 90% non-condensing

-Derating:                               Derate from 100% at +40℃ linearly to

                                               50% at +60℃
