Features
-Full range AC input 90-264V
-Meet Energy Star EPS 2.0/ErP Lot 7 No Load Power Consumption≤0.21W(N2)
-Comprehensive output choices meet all applications
-With PFC Circuit
-New N2 models available for high altitude(5,000M) and DOE level VI
General Specification
-Input Frequency :47-63Hz
-Over Current Protection
-Over Temperature Protection
-Over Voltage Protection
-Operating Temperature: 0- +40度
-Storge Temperature: -30- +60度
-EMC Standrd: EN55022 CLASS B, EN55024 CLASS B
-Safety Standard Approvals:
CB,TUV/GS,UL/Cul,EMC,FCC,CE,等
-MTBF:200,000 hours at typical load at 25度 ambient base on SR332

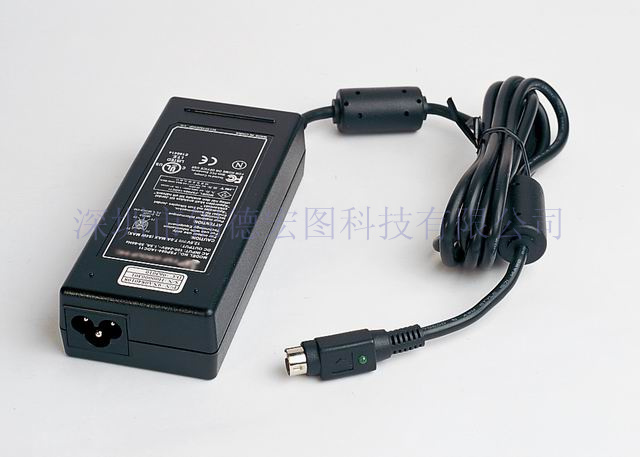

- Output DC:15V/5A
- AC Socket: C14,C6,C8
